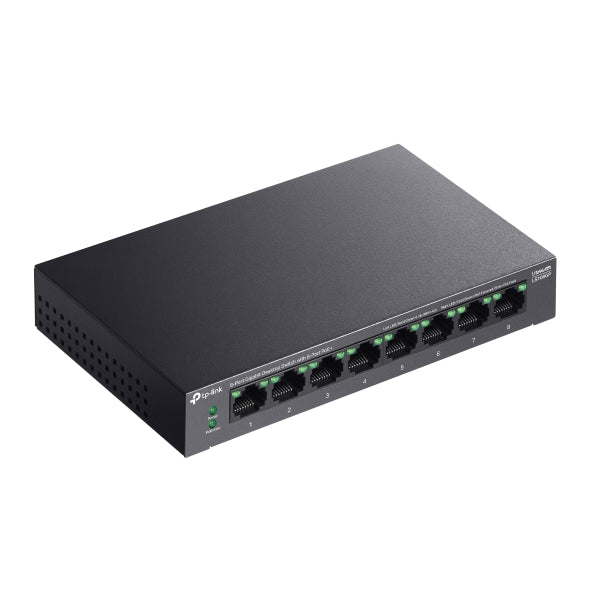

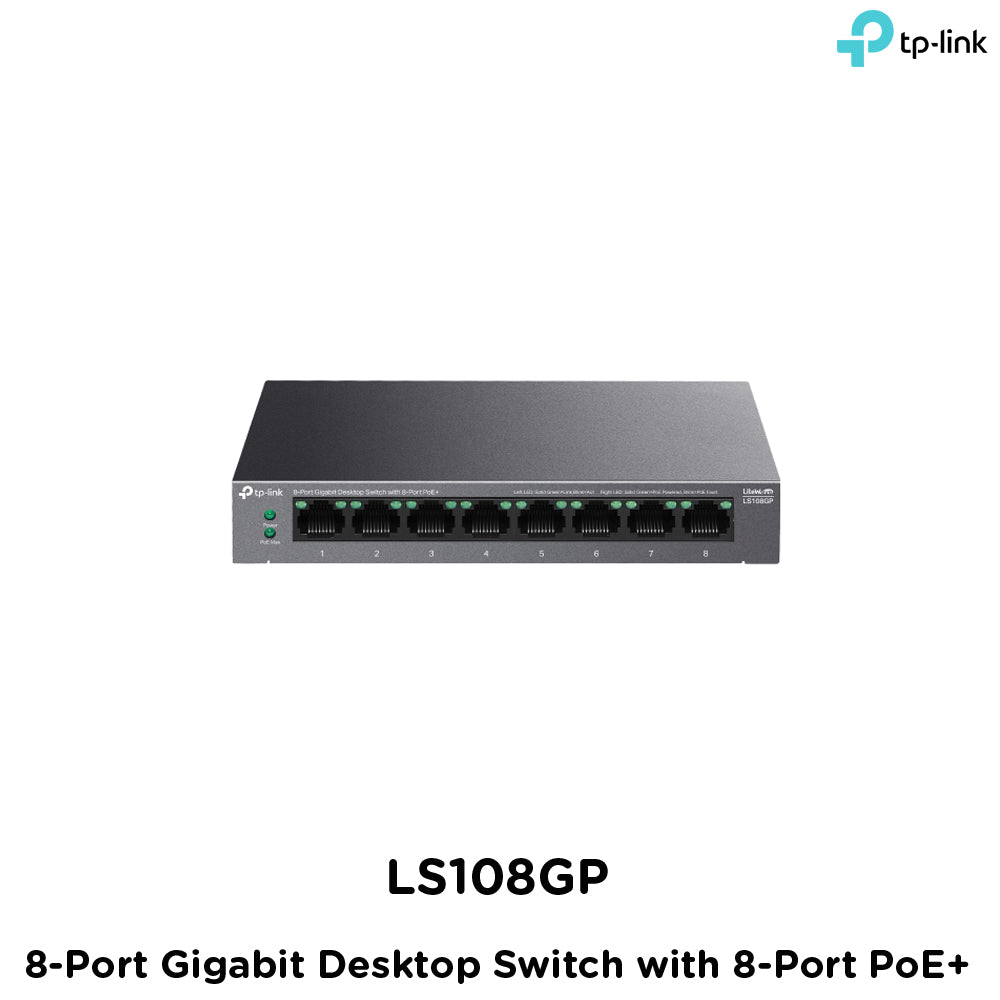

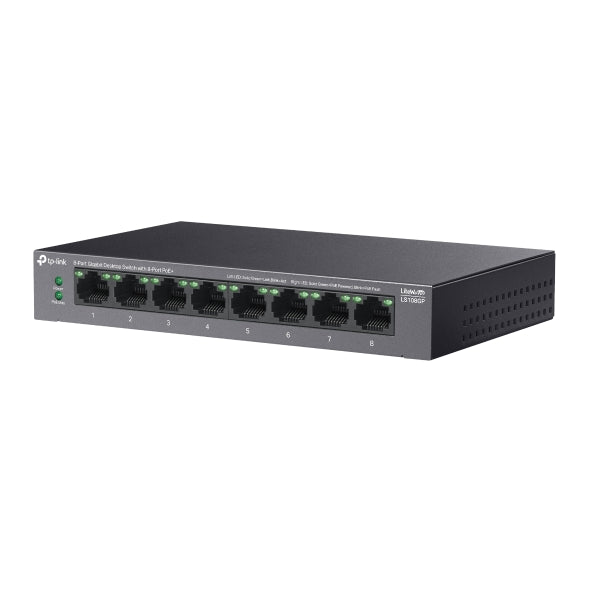

Tp-Link LS108GP I 8-Port Gigabit Desktop Switch with 8-Port PoE+

Tp-Link LS108GP I 8-Port Gigabit Desktop Switch with 8-Port PoE+

Brand : TP-LINK

SKU:  LS108GP

₱1,100.00
₱1,200.00 ₱1,100.00
Sale! Sold out
Taxes included.

Low stock: 2 left

LS108GP

 New

8-Port Gigabit Desktop Switch with 8-Port PoE+

  • Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
  • 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
  • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
  • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
HARDWARE FEATURES
Interface • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Installation • Desktop

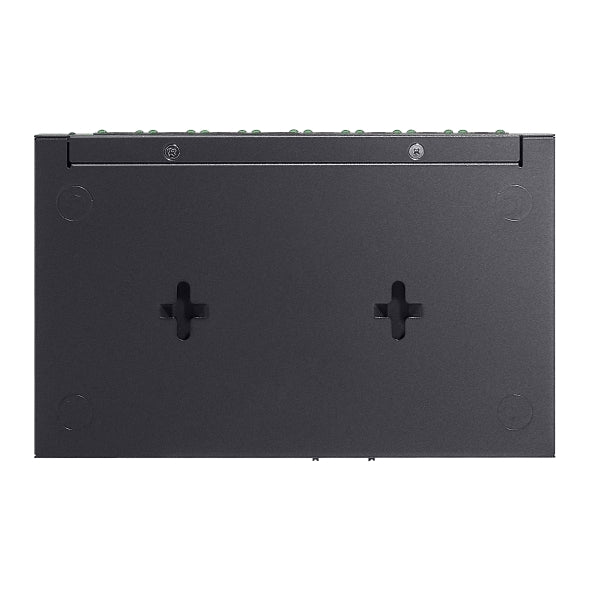

• Wall Mounting
Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Budget: 62 W
Dimensions ( W x D x H ) 6.2×3.9×1.0 in (158×99×25 mm)
Max Power Consumption • 5.53 W (220 V/50 Hz. no PD connected)
• 71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation • 18.81 BTU/h (220 V/50 Hz. no PD connected)
• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4K
Jumbo Frame 16 KB
SOFTWARE FEATURES

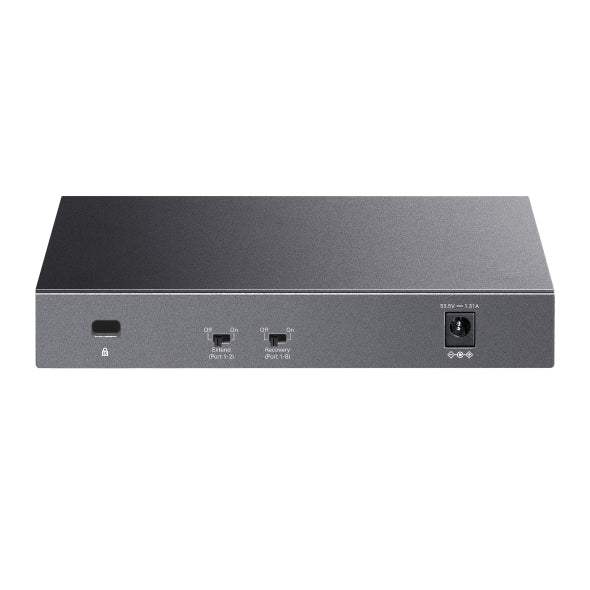

Advanced Features • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents • LS108GP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
