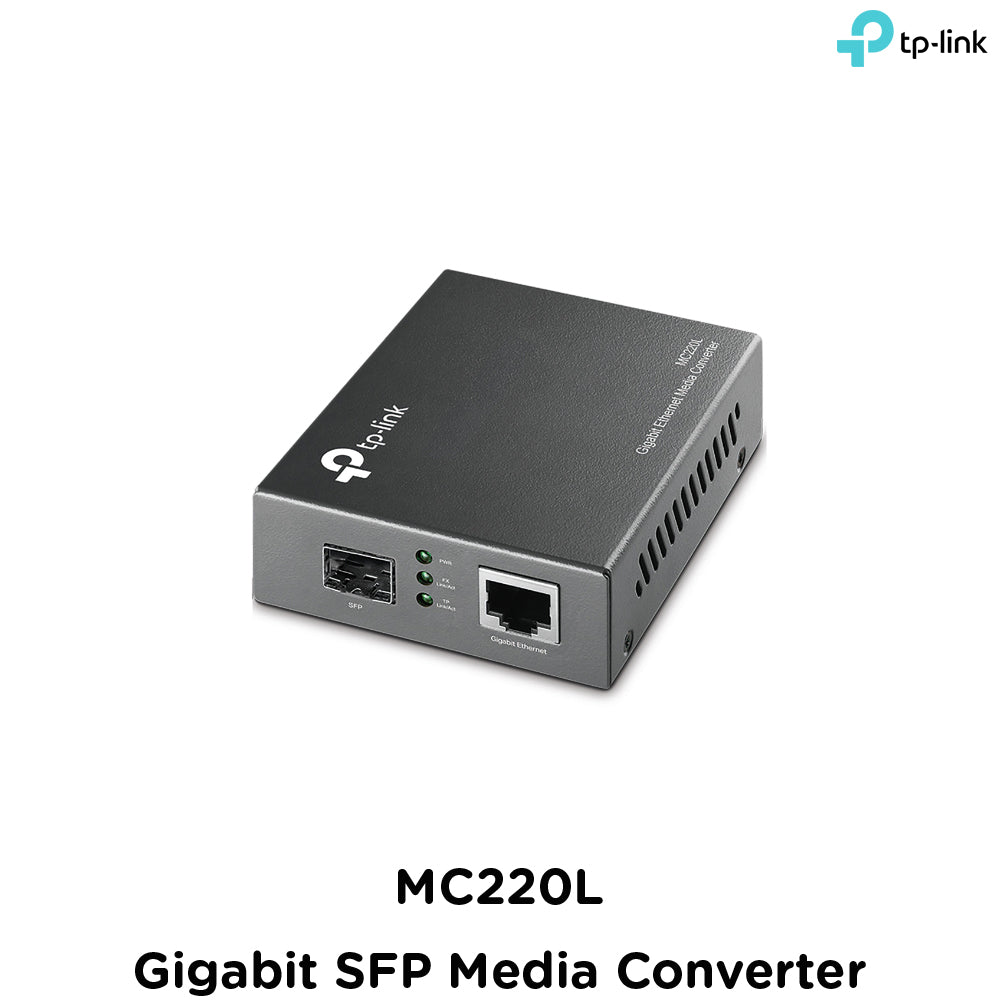

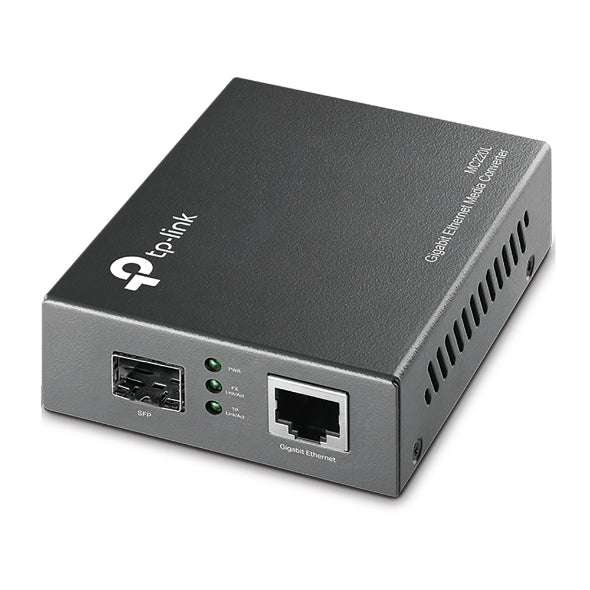

Tp-Link MC220L I Gigabit SFP Media Converter

Tp-Link MC220L I Gigabit SFP Media Converter

Brand : TP-LINK

SKU:  MC220L

₱1,190.00
₱1,285.00 ₱1,190.00
Sale! Sold out
Taxes included.

Low stock: 2 left

MC220L

Gigabit SFP Media Converter

  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable
  • Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber
Ports 1 Gigabit SFP port
1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length Depends on the used SFP module
Network Media 1000BASE-FX Multi-mode/Single-mode SFP module
Network Media 1000BASE-X Multi-mode/Single-mode SFP module
Network Media 1000BASE-T UTP category 5, 5e, 6 cable (maxium 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, LINK, RX
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 3.95W
Safety & Emission FCC, CE
Package Contents • Media Converter MC220L
• Power Adapter
• Installation Guide
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
