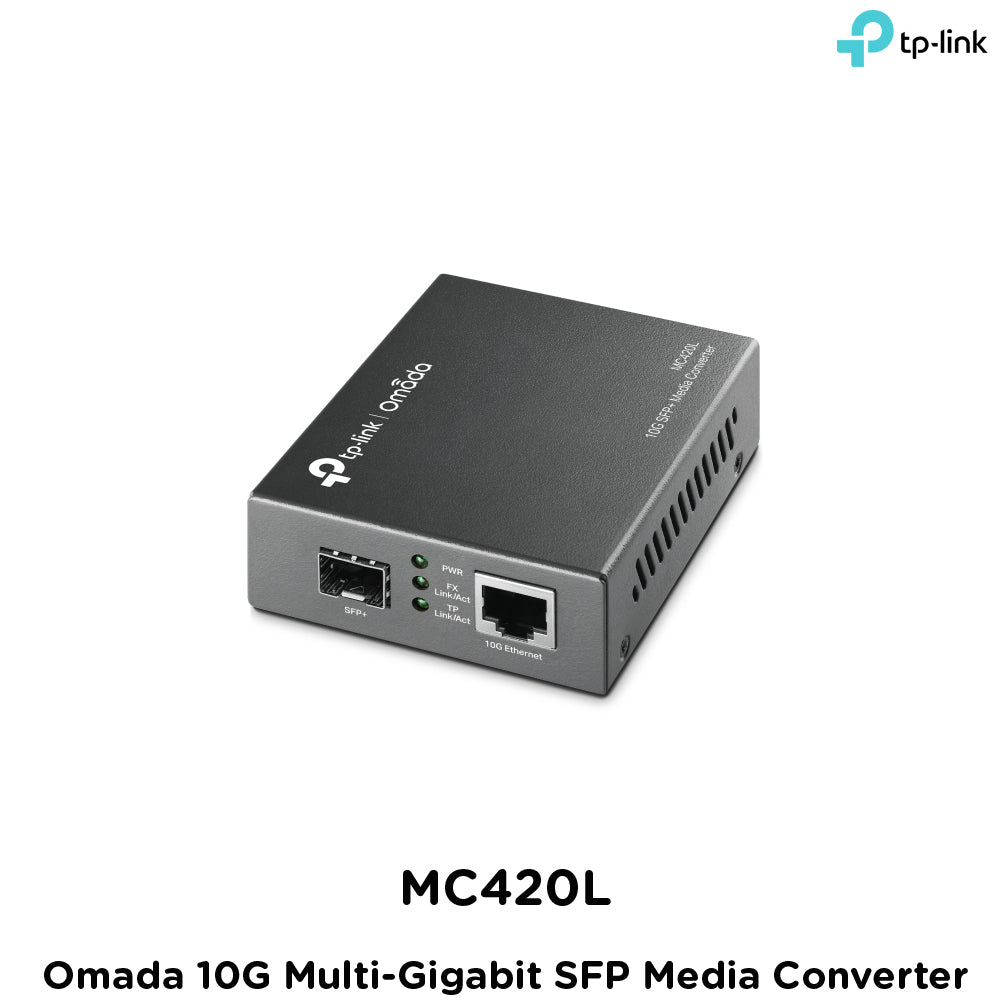

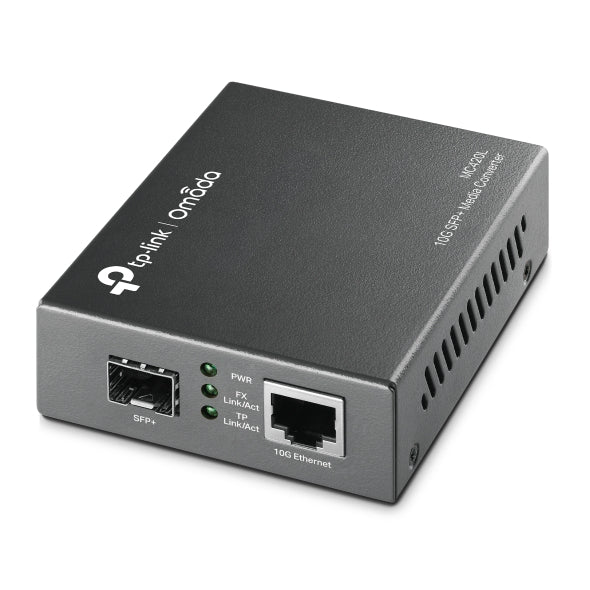

Tp-Link MC420L I Omada 10G Multi-Gigabit SFP Media Converter

Tp-Link MC420L I Omada 10G Multi-Gigabit SFP Media Converter

Brand : TP-LINK

SKU:  MC420L

₱4,790.00
₱4,990.00 ₱4,790.00
Sale! Sold out
Taxes included.

Low stock: 2 left

MC420L

 New

Omada 10G Multi-Gigabit SFP Media Converter

  • 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
  • FX port supports hot-swappable
  • Maximum transmission distance depends on the inserting SFP
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Basic Function • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Maximum transmission distance depends on the inserting SFP module
Ports • 1× SFP+ port
• 1× 1G/2.5G/5G/10Gbps RJ45 port
Wave Length Depends on the used SFP module
Network Media 10GBASE-R Multi-mode/Single-mode SFP+ module
Network Media 10GBASE-T 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 4.12W
Safety & Emission UL, RoHS
Package Contents • MC420L
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%RH~90%RH Non-condensing
• Storage Humidity: 5%RH~90%RH Non-condensing
