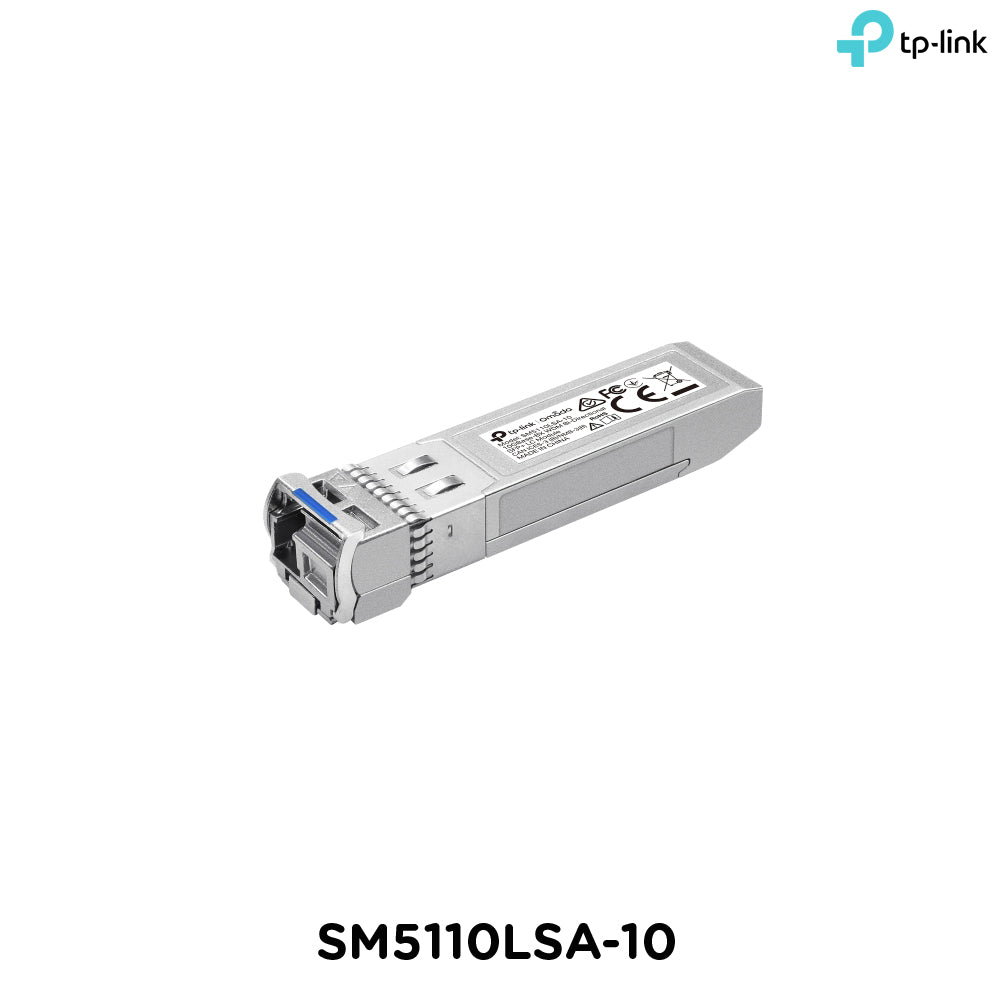

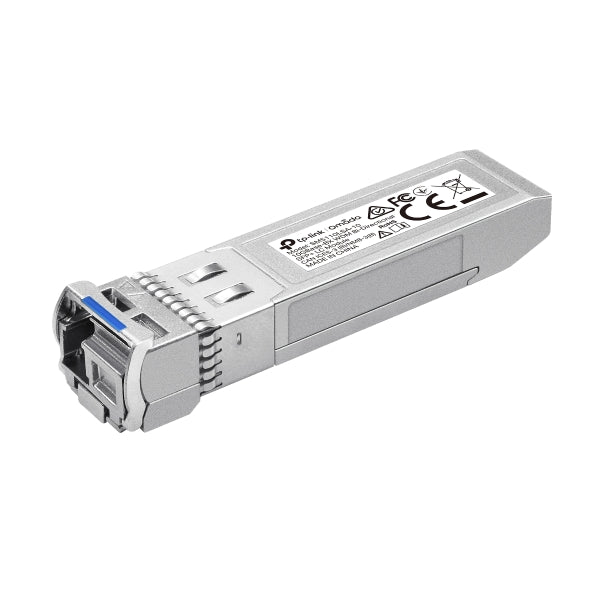

Tp-Link SM5110LSA-10 I Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

Tp-Link SM5110LSA-10 I Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

Brand : TP-LINK

SKU:  SM5110LSA-10

₱2,490.00
₱2,490.00 ₱2,490.00
Sale! Sold out
Taxes included.

Low stock: 2 left

SM5110LSA-10

 Coming Soon

Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
  • Single mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
  • Compatible with switches with 10G ports like SG3428X and SG3452X
Transceiver
Standards and Protocols • IEEE 802.3ae
• SFF 8431, SFF 8432, SFF-8472
Wavelength •TX: 1330nm
•RX: 1270nm
Power Supply 3.3V
Fiber Type 9μm/125μm Single-Mode
Max. Cable Length 10km
Data Rate 10.3125 Gbps
Connector LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment • Operating Temperature: 0°C to 70°C (32–158 ℉)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
HARDWARE FEATURES
DDM Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12.0 mm)
PACKAGE CONTENTS
Package Contents • SM5110LSA-10
• Installation Guide
