Tp-Link TL-FC311A-20 I Gigabit WDM Media Converter

Tp-Link TL-FC311A-20 I Gigabit WDM Media Converter

Brand : TP-LINK

SKU:  TL-FC311A-20

₱1,349.00
₱1,490.00 ₱1,349.00
Sale! Sold out
Taxes included.

Low stock: 2 left

TL-FC311A-20

Gigabit WDM Media Converter

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

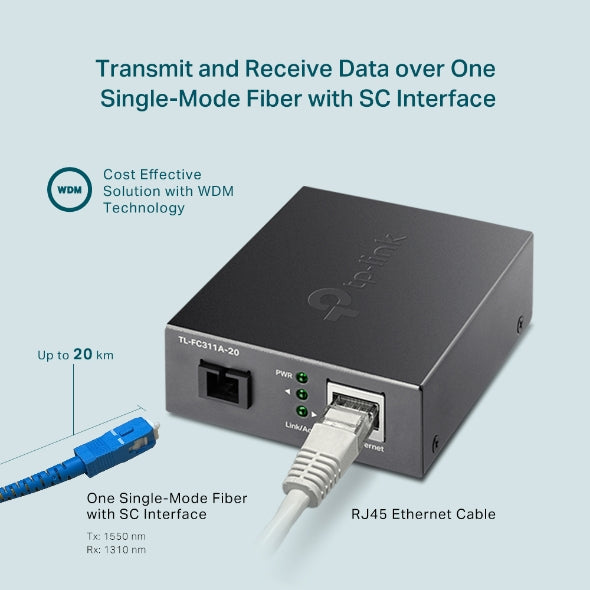

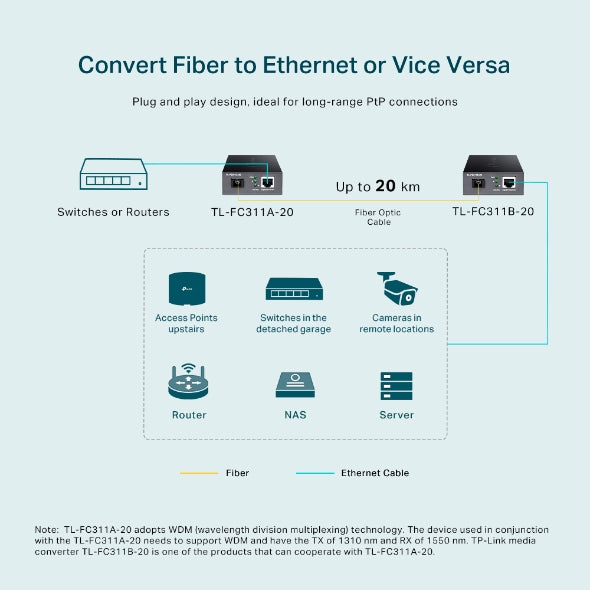

  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20 km
NETWORK
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
HARDWARE FEATURES

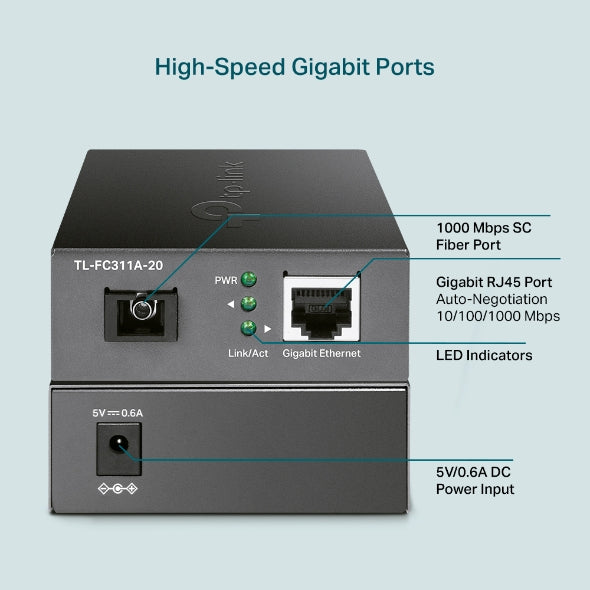

Interface • 1× Gigabit SC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media • Single-mode Fiber
• UTP category 5, 5e cable (maximum 100m)

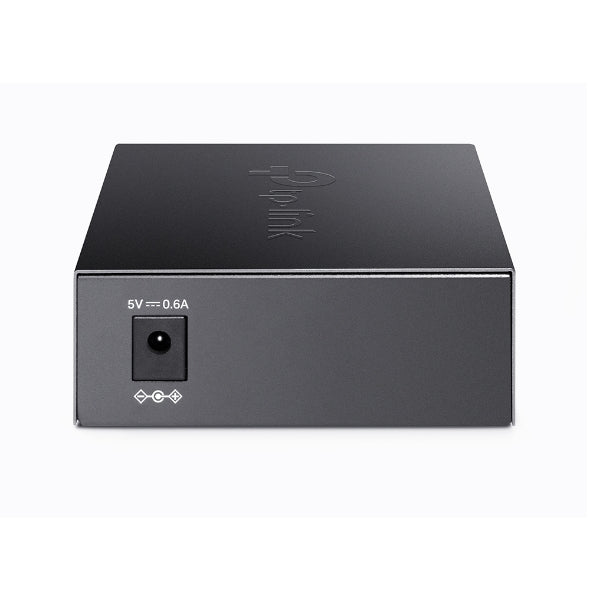

Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Wave Length 1550 nm TX, 1310 nm RX
Dimensions ( W x D x H ) 3.7 × 2.9 × 1.1 in
(95 × 73 × 27 mm)
MEDIA CONVERTER & MODULE
Fiber Type 9/125 μm single-mode fiber
ENVIRONMENT
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
OTHERS
Package Contents • Media Converter TL-FC311A-20
• Power Adapter
• Installation Guide
