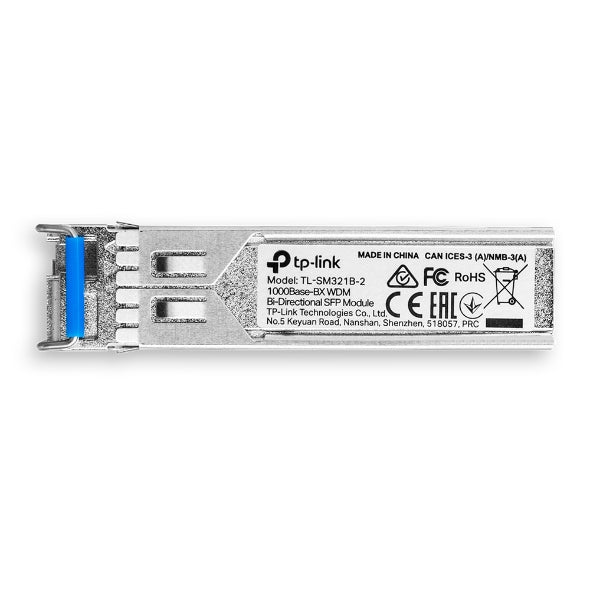

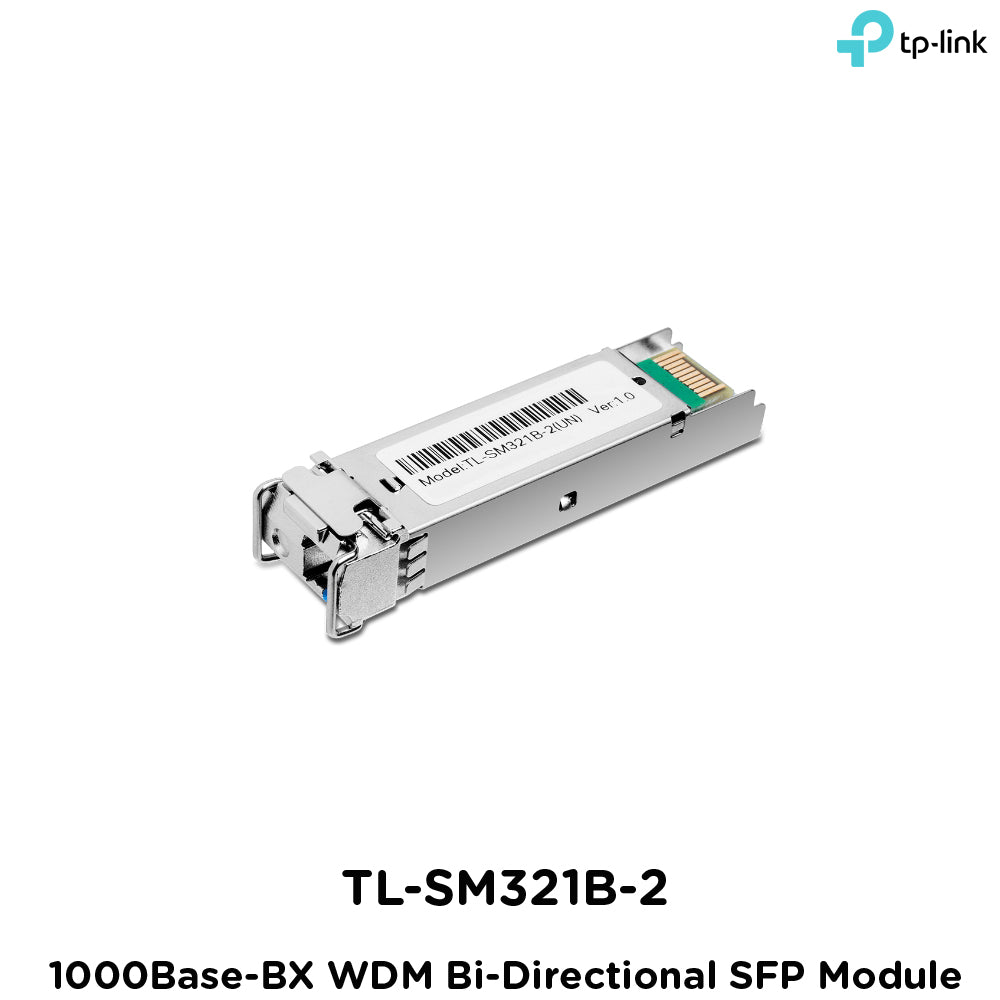

Tp-Link TL-SM321B-2 I 1000Base-BX WDM Bi-Directional SFP Module
Tp-Link TL-SM321B-2 I 1000Base-BX WDM Bi-Directional SFP Module
Brand : TP-LINK
SKU: SKU: TL-SM321B-2
Regular price
₱749.00
Regular price
₱790.00
Sale price
₱749.00
Unit price
/
per
Taxes included.
Low stock: 2 left
Couldn't load pickup availability
No reviews
TL-SM321B-2
1000Base-BX WDM Bi-Directional SFP Module
- Designed for on-site gigabit fiber communication

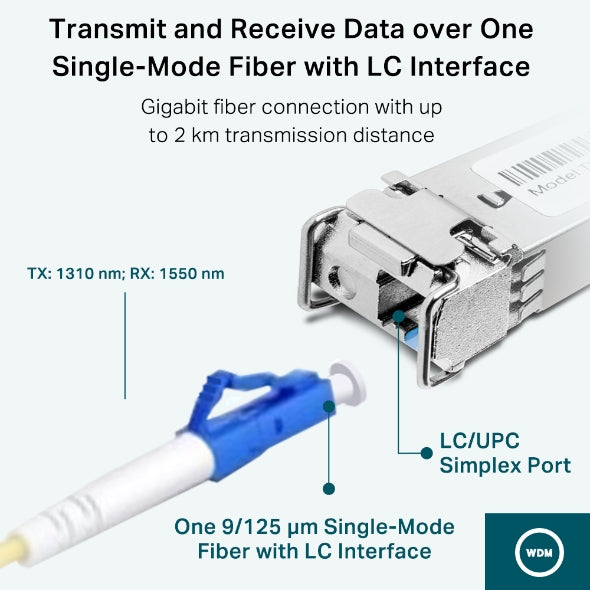

- Up to 2 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A-2 as a pair
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | Tx: 1310 nm Rx: 1550 nm |
| Dimensions (W*D*H) | 2.2*0.6*0.5 in (55.4*14.6*12.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 2 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | • SFP Module TL-SM321B-2 • Installation Guide |
