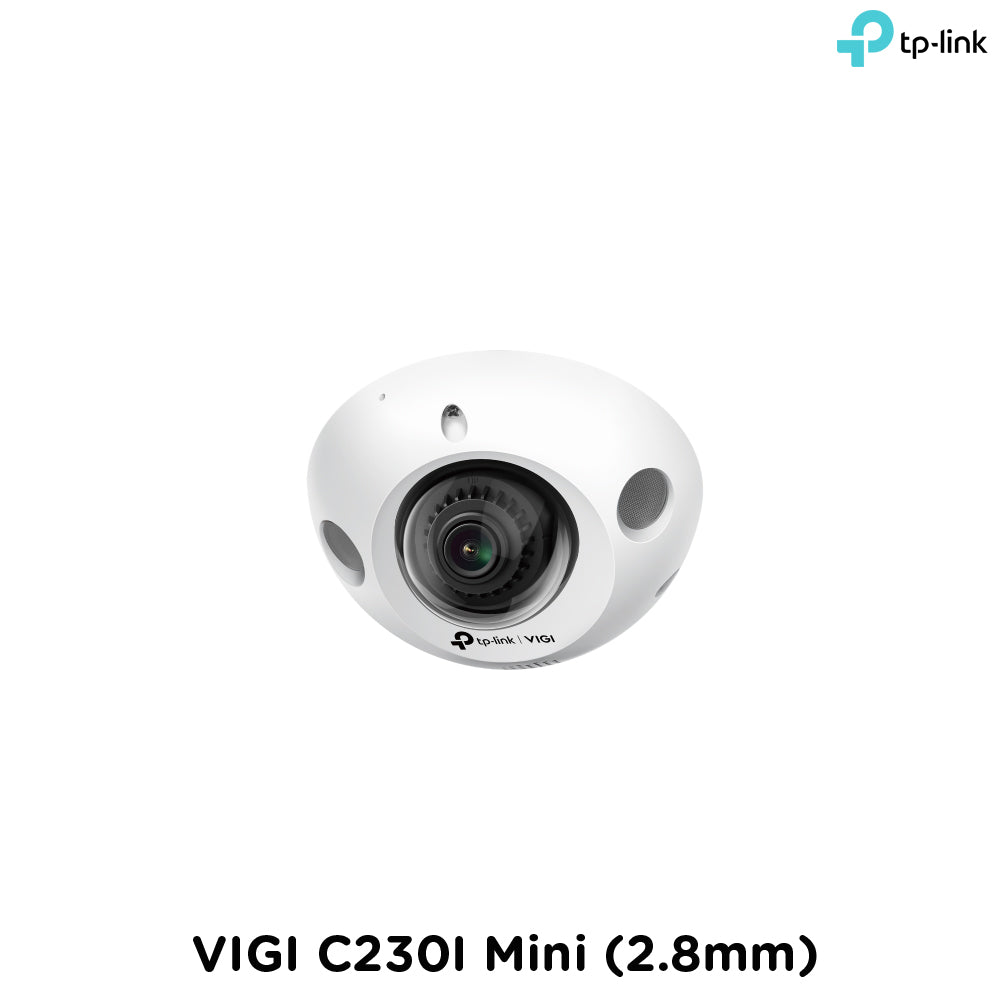

Tp-Link VIGI C230I Mini(2.8mm) I 3MP IR Mini Dome Network Camera

Tp-Link VIGI C230I Mini(2.8mm) I 3MP IR Mini Dome Network Camera

Brand : TP-LINK

SKU:  V-C230I-M

Low stock: 2 left

₱4,390.00
₱4,590.00 ₱4,390.00
Sale! Sold out

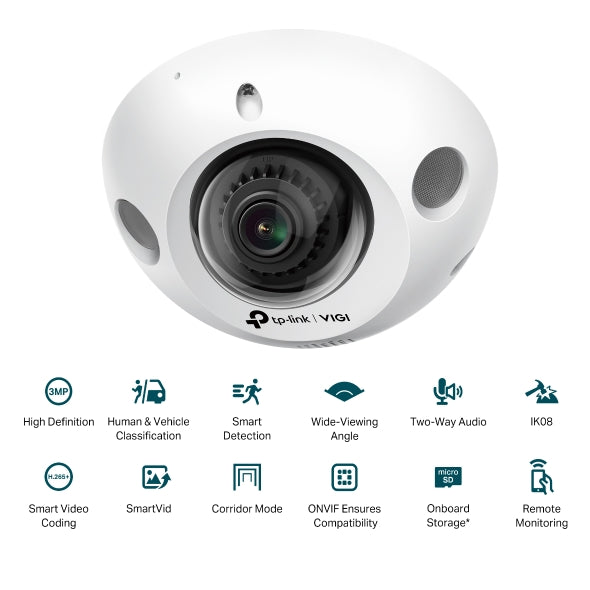

VIGI C230I Mini

3MP IR Mini Dome Network Camera

  • 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

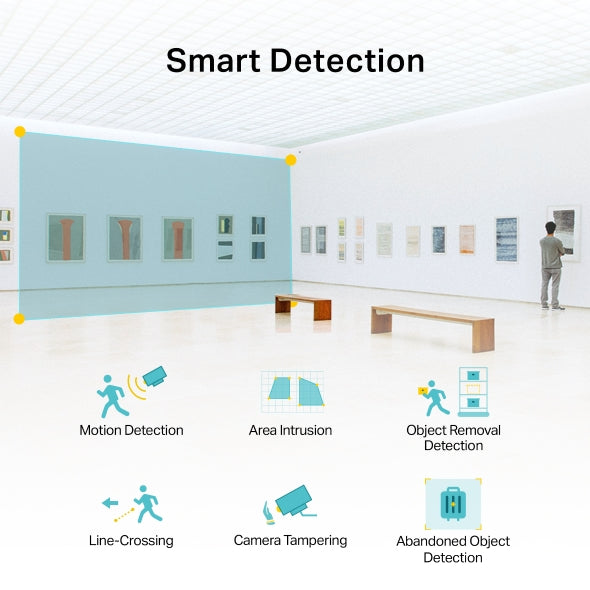

  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

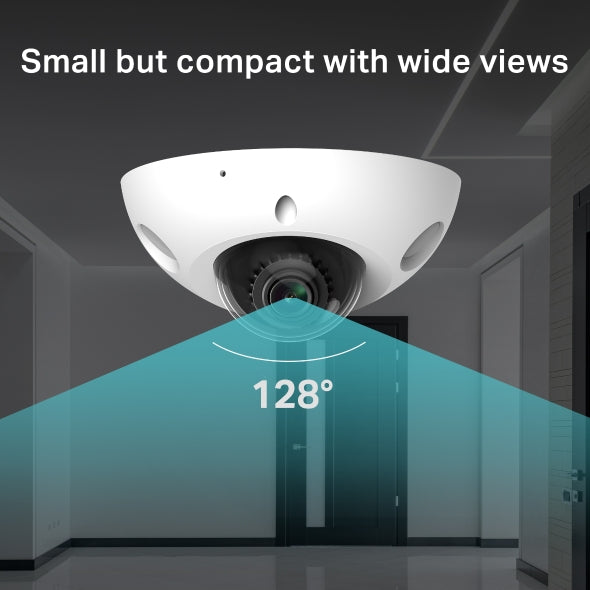

  • Small but compact with wide views: With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

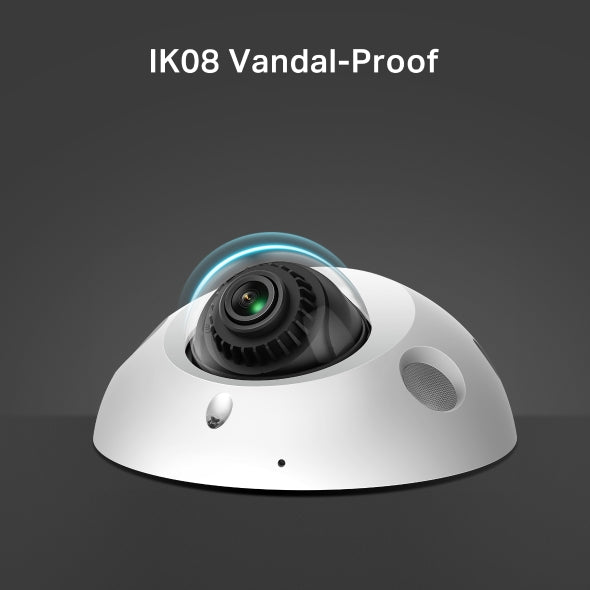

  • IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

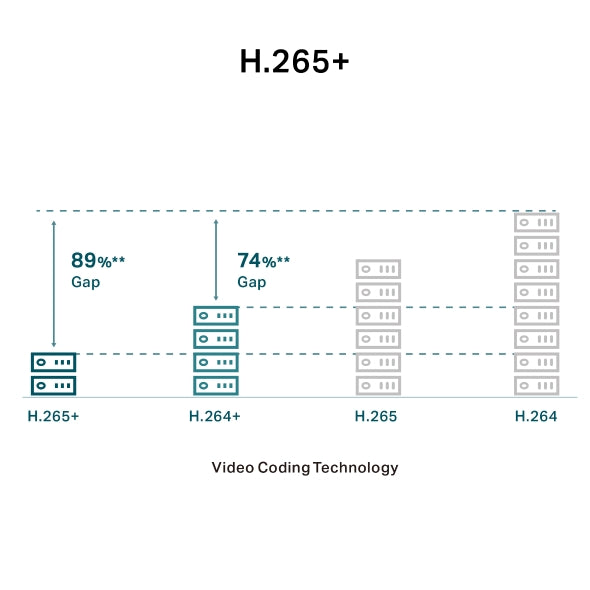

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
CAMERA
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture F1.6
Lens 2.8 mm
Lens Mount M12
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
IR Working Distance 30m
Viewing Angle Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm
Aperture F1.6
FOV 2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Lens Mount M12
DORI Distance 2.8mm ;
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
Angle Adjustment (Manual)
Range Pan: -30° to 30°
Tilt: 0° to 85°
Rotate: -15° to 15°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2304 × 1296
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Open Network Video Interface (Profile S)
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning
Linkage Method N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button Yes
Power DC Power Port
Button Reset Button
Video Output -
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

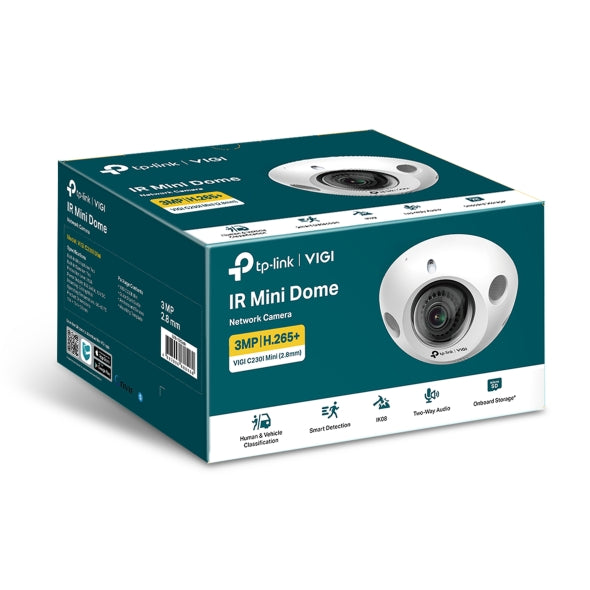

Package Contents VIGI Network Camera
Quick Start Guide
Mounting Accessories
Mounting Template
Dimensions( H X W X D ) 114 × 114 × 58 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight 0.23 kg
Gross Weight 0.41 kg
Power Consumption 12V DC: Max 7.5W
PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Vandal Resistant IK08
Protection IK08
Product Dimensions (L x W x H) 114× 58× 114 mm
Certifications CE/VCCI/BSMI/KC/ONVIF
VIDEO/IMAGE
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 3MP (2304 × 1296)
Video Streaming 3 Main Streams
3 Sub-Streams
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Video Bit Rate 64 Kbps to 4 Mbps
Day/Night Switch Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
