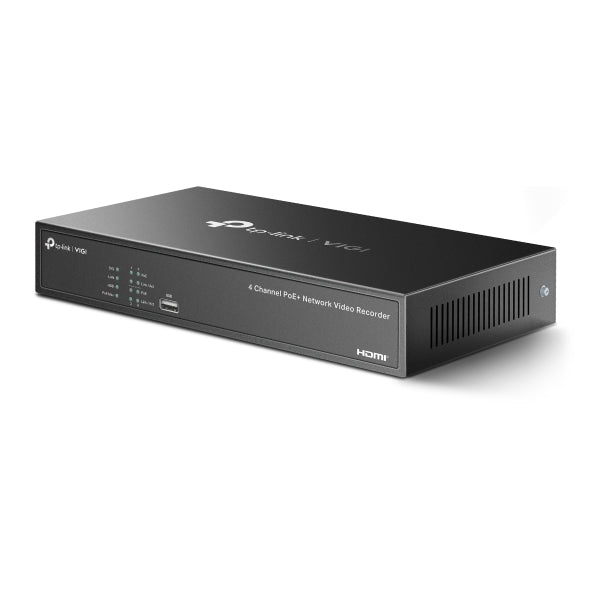

Tp-Link VIGI NVR1004H-4P I VIGI 4 Channel PoE+ Network Video Recorder
Tp-Link VIGI NVR1004H-4P I VIGI 4 Channel PoE+ Network Video Recorder
Brand : TP-LINK
SKU: SKU: V-NVR1004H-4P
No reviews
Low stock: 2 left
Regular price
₱4,990.00
Regular price
₱5,490.00
Sale price
₱4,990.00
Unit price
/
per
Couldn't load pickup availability
VIGI NVR1004H-4P
Hot BuysVIGI 4 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 16 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
| Video and Audio | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

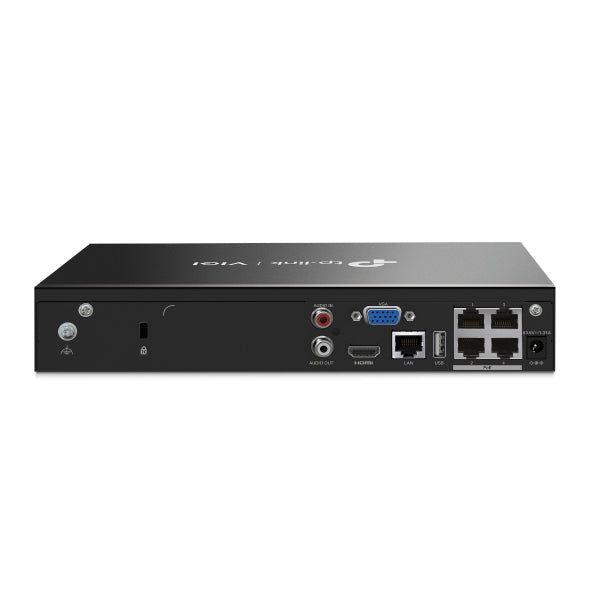

| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 16 TB |
| PoE | |
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| GENERAL | |
|---|---|
| Operating Temperature | -10–55 °C |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
| PoE | Standard: 802.3af/at PoE Ports: Ports 1-4 PoE Budget: 53 W |
| External Power Supply | 53.5V DC/1.31A |
| Power Supply | 53.5V DC/1.31A |
| Power Consumption | 4.25 W (without disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| VIDEO/IMAGE | |
|---|---|
| Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
