Description

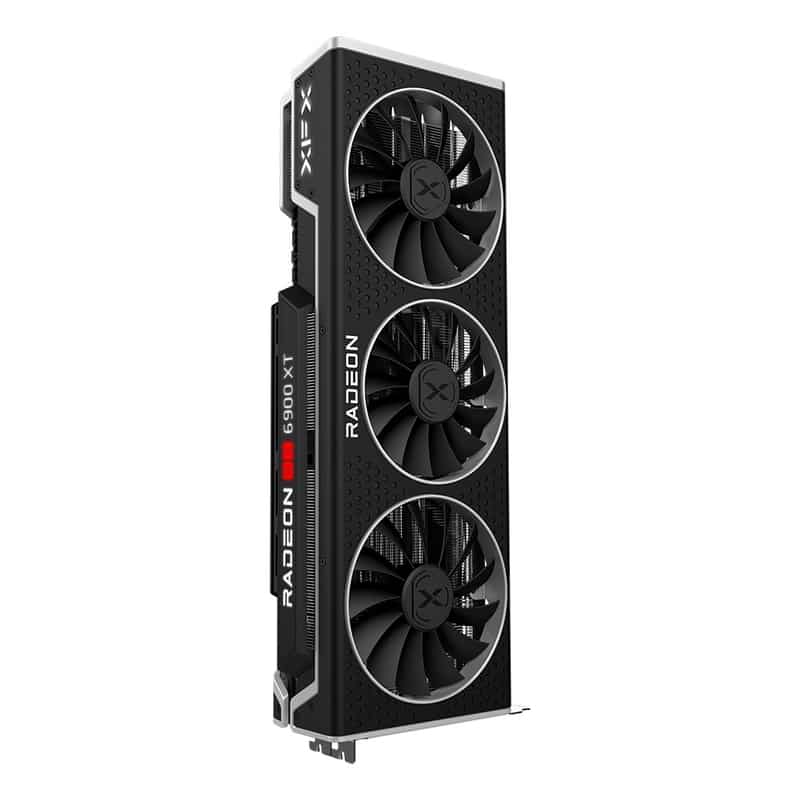

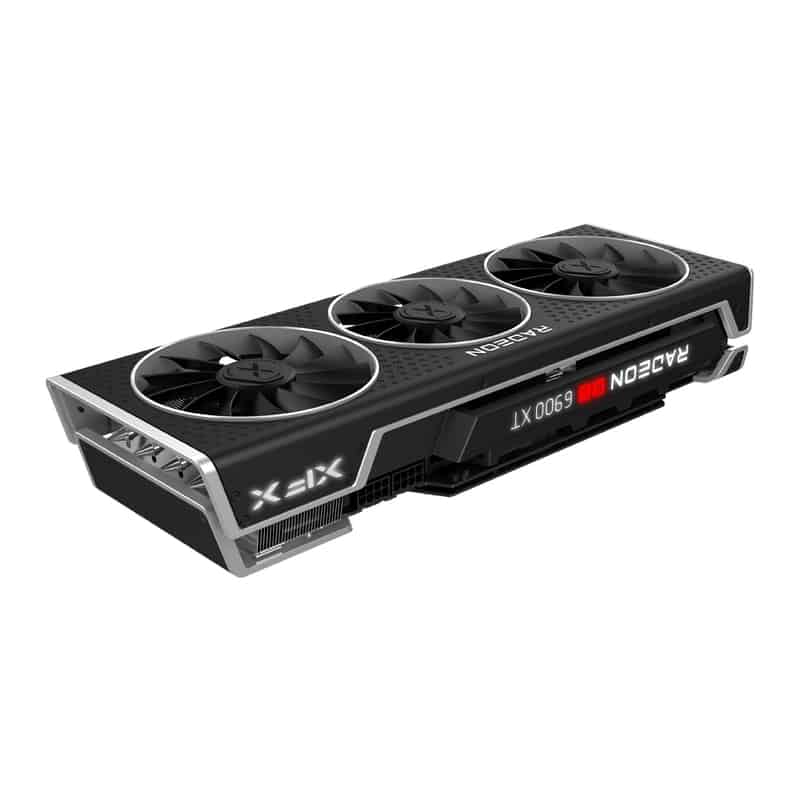

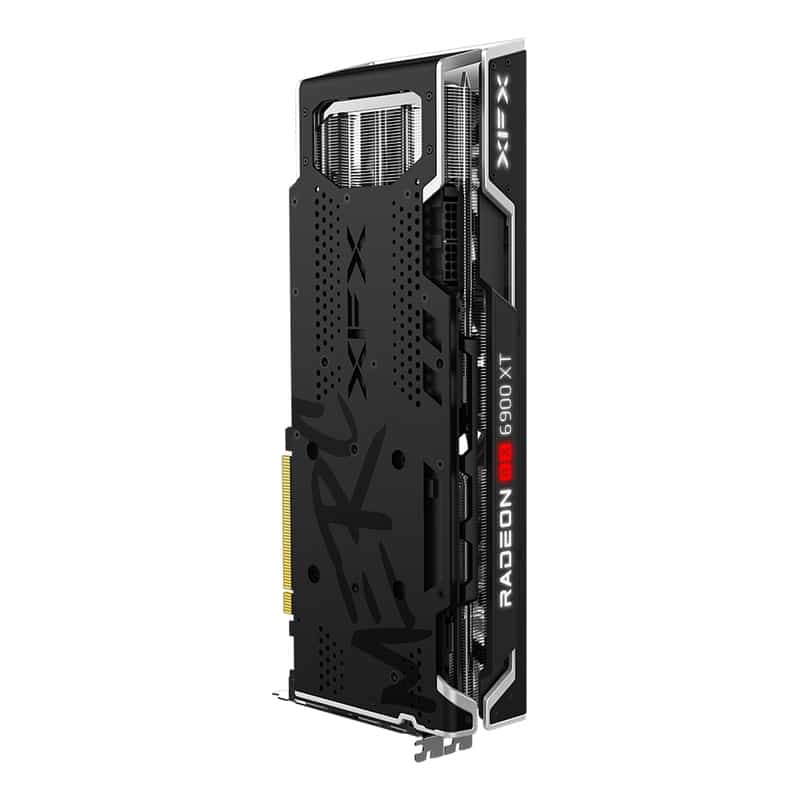

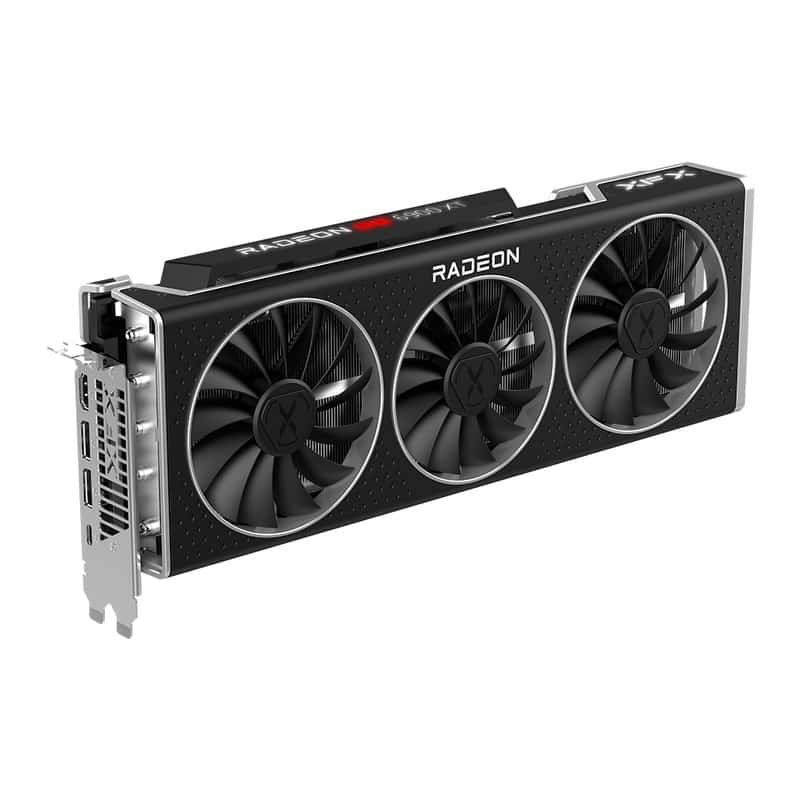

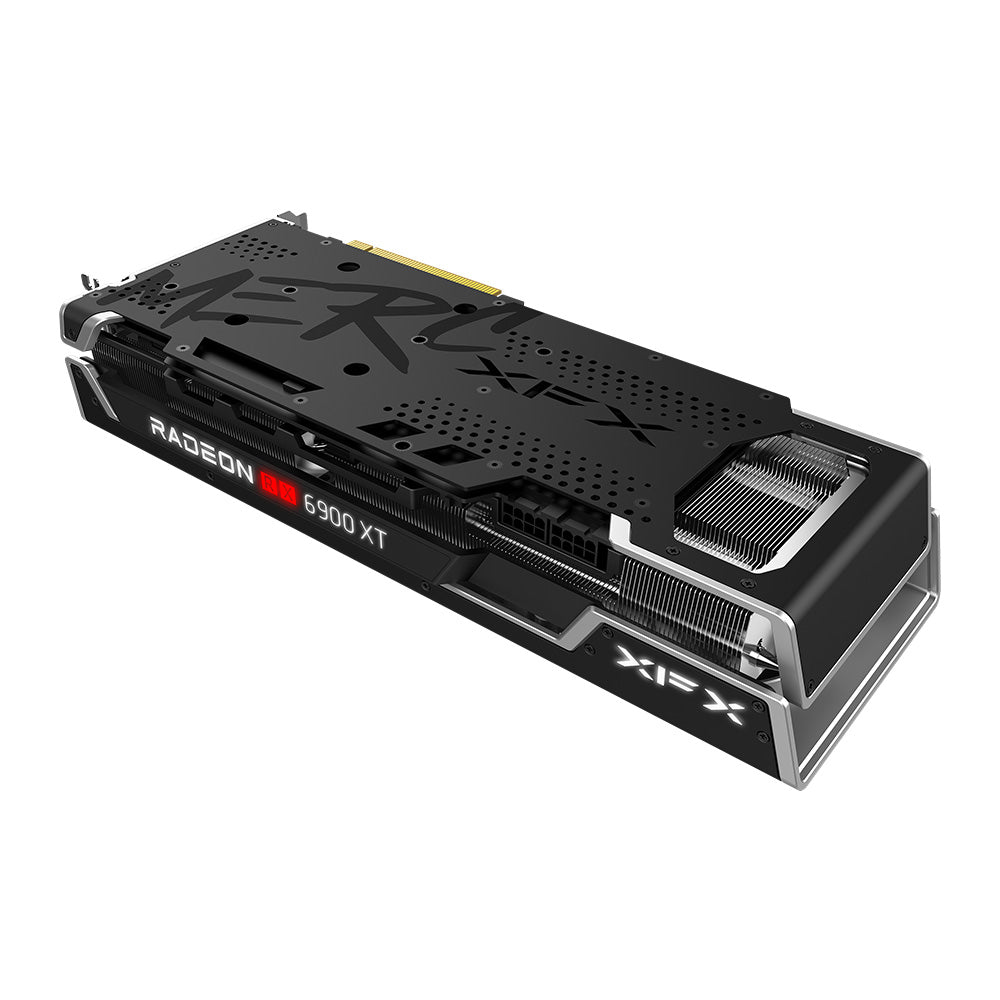

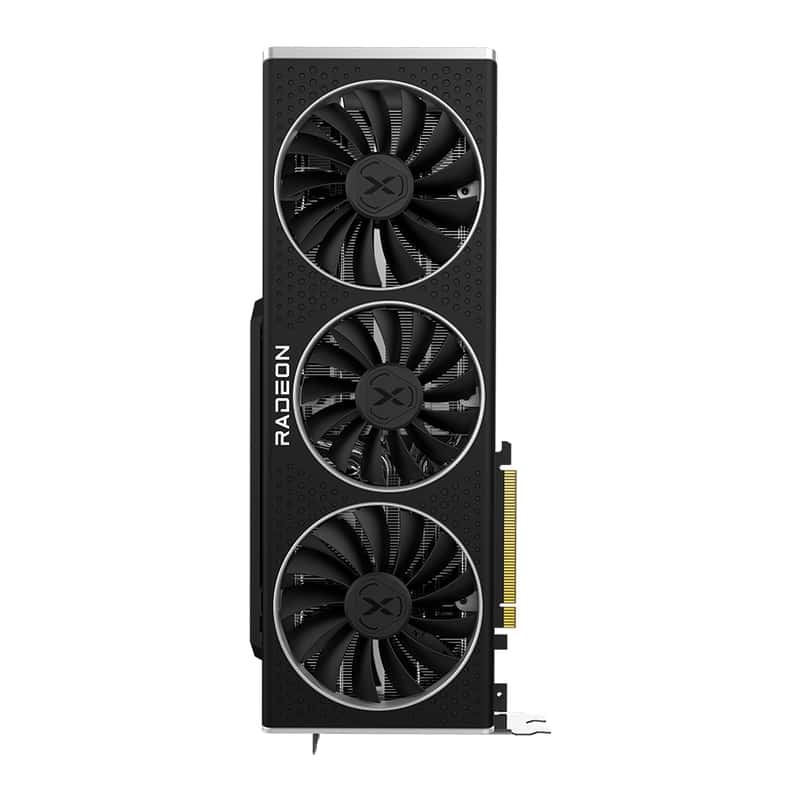

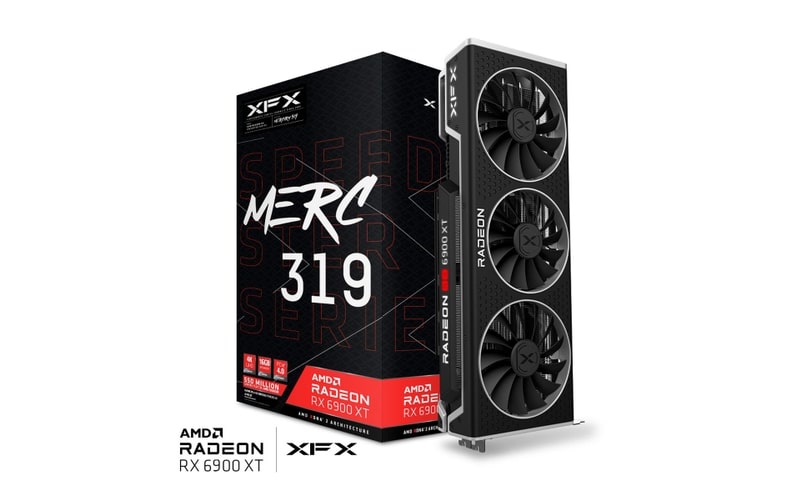

XFX Speedster MERC 319 AMD Radeon™ RX 6900 XT Limited Black Gaming Graphics Card with 16GB GDDR6, AMD RDNA™ 2
PERFORMANCE TO RULE YOUR GAME
Introducing the AMD Radeon™ RX 6000 Series graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture, engineered to deliver powerhouse performance for all gamers. The AMD Radeon™ RX 6900 XT graphics cards power a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame.
TECH SPECS
Manufacturer: XFX
Model Number:RX-69XTACSD9
Product Name: AMD Radeon™ RX 6900 XT
Product Description: XFX Speedster MERC 319 AMD Radeon™ RX 6900 XT Limited Black Gaming Graphics Card with 16GB GDDR6, HDMI 2xDP USB-C, AMD RDNA™ 2
Short Description : XFX Speedster MERC 319 AMD Radeon™ RX 6900 XT Limited Black Gaming Graphics Card with 16GB GDDR6, AMD RDNA™ 2
Launch Date: May 2021
UPC Number: 778656081482
Bus Type: PCI-E 4.0
Primary Balanced BIOS:
Base clock Up to: 2150 MHz
Game Clock Up To: 2325 MHz*
Boost clock Up to: 2495 MHz**
Stream Processors: 5120
Memory Bus: 256bit
Memory Clock: 16 Gbps
Memory Size: 16 GB
Memory Type: GDDR6
Card Profile: Triple Slot
Thermal Solution: 3 Fan
*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
DisplayPort: 1.4 with DSC
HDMI™: 2.1 VRR and FRL
Output : Display Port 2
Output: HDMI 1
Output: USB-C 1
External Power: 2x PCI-E 8 pin connections
Minimum Power Supply Requirement: 850 watt
XFX Recommended Power Supply: XFX 850W PSU
RoHS
Driver Disk Installation Guide: 1
Card Dimension (cm) 34 x 13.9 x 5.7
Card Dimension (inch) 13.39 x 5.47 x 2.24
Master Carton Dimensions (cm) 46 x 39.5 x 47.5
Master Carton Dimensions (inch) 18.11 x 15.55 x 18.7
Master Carton Weight (Kg) 15.86
Master Carton Weight (lb) 34.96
Package Dimensions (cm) 44.5 x 23.5 x 12.5
Package Dimensions (inch) 17.51 x 9.25 x 4.92
Package Weight (Kg) 2.41
Package Weight (lb) 5.31
Units/Carton 6
AMD RDNA™ 2 Architecture
DirectX® 12 Ultimate
Hardware Raytracing
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology*
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
AMD FidelityFX*
Radeon™ Image Sharpening*
Radeon™ Anti-Lag*
Radeon™ Software
Game Driver Optimizations
OpenGL 4.5 Support
OpenCL Support
* Not compatible with Windows 7. For more information on Radeon technologies, visit: AMD.com/gamingdetails
Advanced 7nm GPU
PCI Express 4.0 Support
Radeon Image Sharpening
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Relive
AMD FreeSync 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity multi-display technology
AMD Radeon Adrenalin Software
AMD WattMan
HDMI 2.0b
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
Up to 6 displays supported, (may require the use of MST Hubs)
OpenGL 4.5 Support
OpenCL Support
