GPUGeForce RTX 3090
-
CUDA cores10496
-
Video Memory24GB GDDR6X
-
Memory Bus384-bit
-
Engine ClockBoost: 1695 MHz
-
Memory Clock19.5 Gbps
-
PCI Express4.0 16x
-

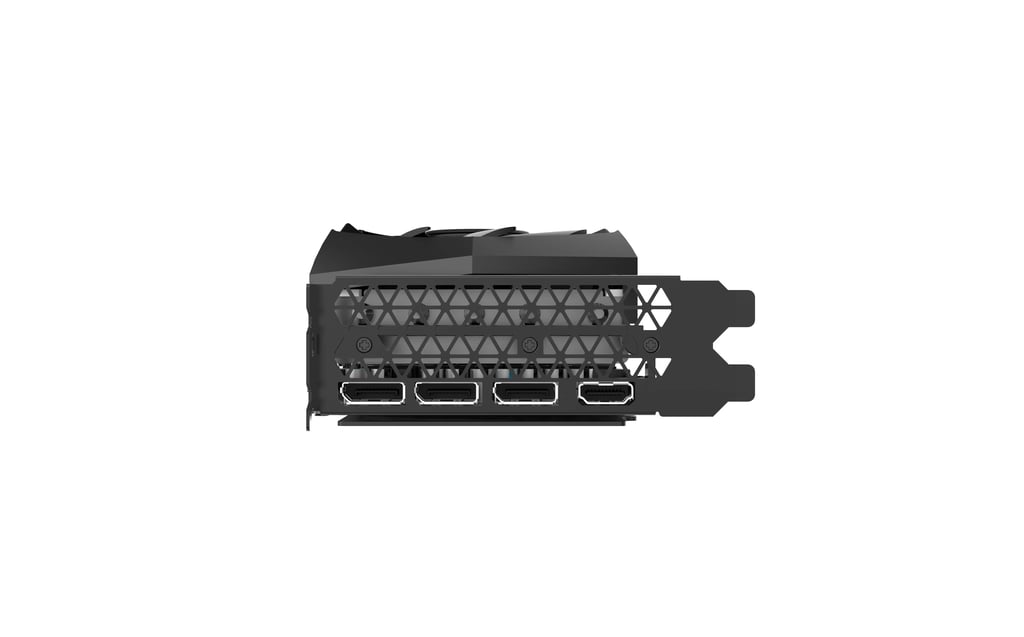

Display Outputs3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
HDMI 2.1* (up to 7680x4320@60Hz)
*Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS -
HDCP Support2.3
-
Multi Display CapabilityQuad Display
-
Recommended Power Supply750W
-
Power Consumption350W
-
Power Input2 x 8-pin
-
DirectX12 Ultimate
-
OpenGL4.6
-
CoolingIceStorm 2.0
-
Slot Size2.5 slot
-
SLINVLink Ready
-
Supported OSWindows 10 64-bit (build 2004 or later)
-
Card Length317.8mm x 120.7mm x 58mm / 12.5" x 4.75" x 2.28"
-

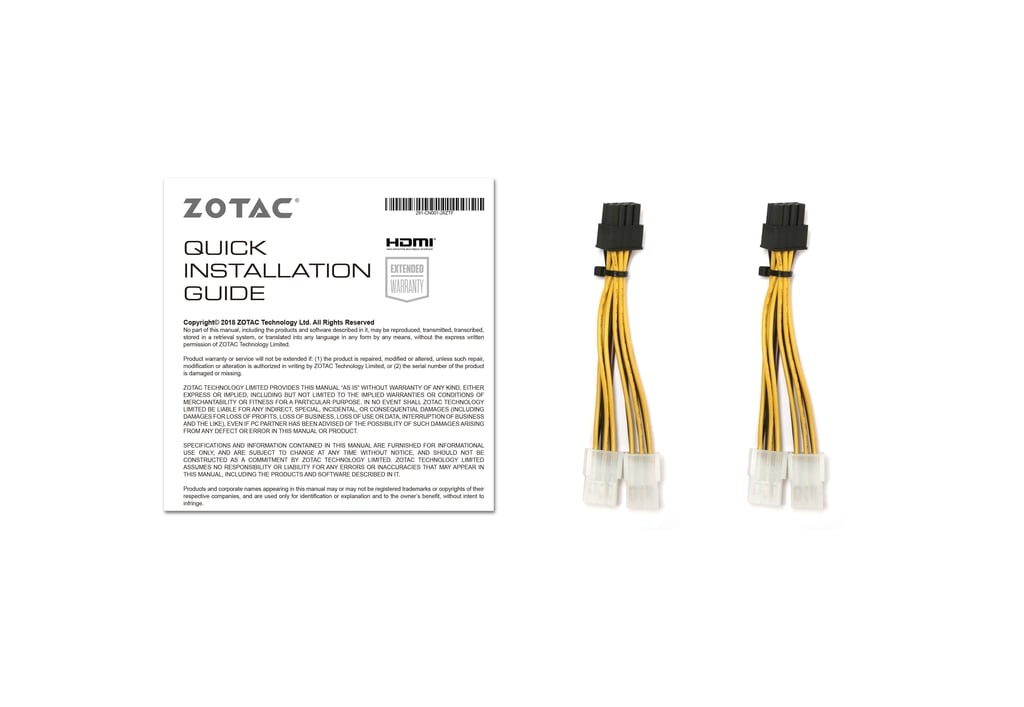

Accessories2 x Dual 6-pin to 8-pin cable
Manual
Description

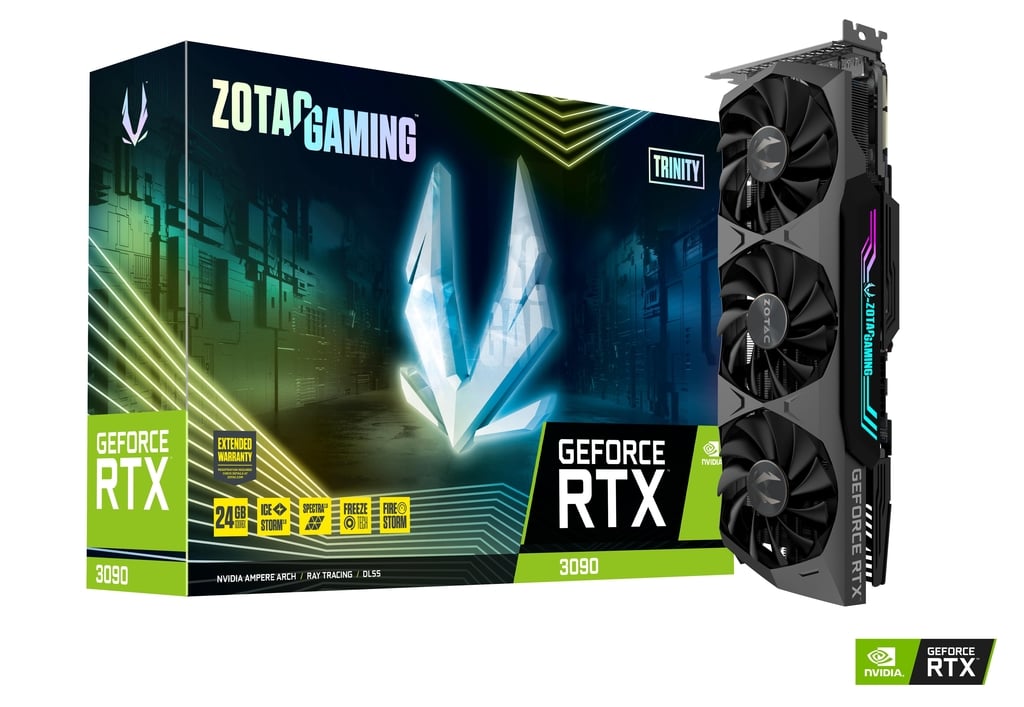

Get Amplified with the ZOTAC GAMING GeForce RTX™ 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast GDDR6X memory, the ZOTAC GAMING GeForce RTX 3090 Trinity gives rise to the amplified gaming experience with ultra graphics fidelity.
Features:
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- SPECTRA 2.0 RGB Lighting
- IceStorm 2.0 Advanced Cooling
- Active Fan Control with FREEZE Fan Stop
- Metal Frontplate and RGB LED Backplate
- FireStorm Utility
- NVIDIA NVLink (SLI-ready), VR Ready
PRODUCT SPECIFICATIONS
-
GPUGeForce RTX 3090
-
CUDA cores10496
-
Video Memory24GB GDDR6X
-
Memory Bus384-bit
-
Engine ClockBoost: 1695 MHz
-
Memory Clock19.5 Gbps
-
PCI Express4.0 16x
-
Display Outputs3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
HDMI 2.1* (up to 7680x4320@60Hz)
*Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS -
HDCP Support2.3
-
Multi Display CapabilityQuad Display
-
Recommended Power Supply750W
-
Power Consumption350W
-
Power Input2 x 8-pin
-
DirectX12 Ultimate
-
OpenGL4.6
-
CoolingIceStorm 2.0
-
Slot Size2.5 slot
-
SLINVLink Ready
-
Supported OSWindows 10 64-bit (build 2004 or later)
-
Card Length317.8mm x 120.7mm x 58mm / 12.5" x 4.75" x 2.28"
-
Accessories2 x Dual 6-pin to 8-pin cable
Manual
